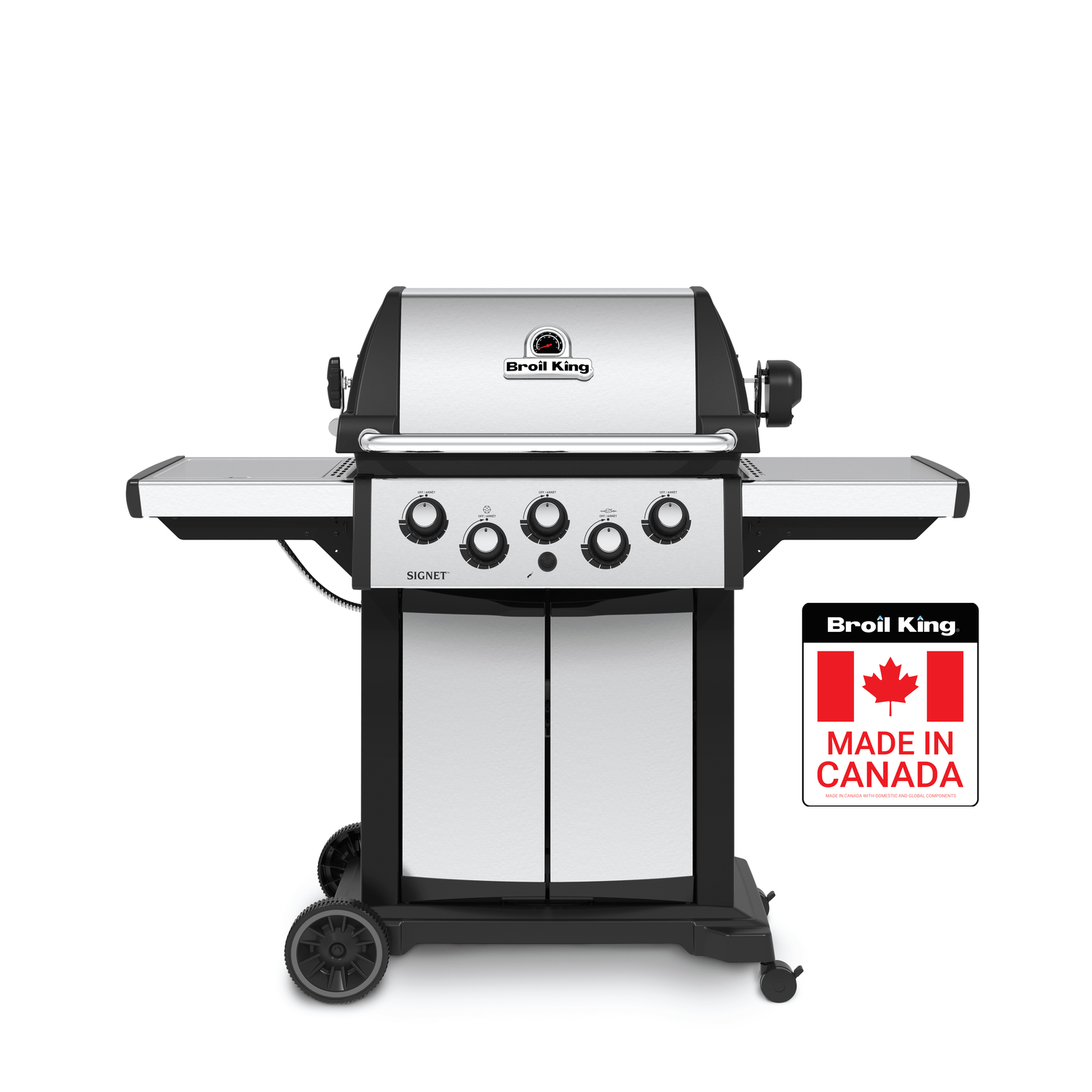

Broil King - Signet™ 390

Signet 390

Spare Parts for these models
946882
946883

You can click on each circle to go to the item's detail page and add the item to your shopping cart.
Use the table below to ensure the item fits to the corresponding model number.
The exploaded views and the item list apply to the newest model.

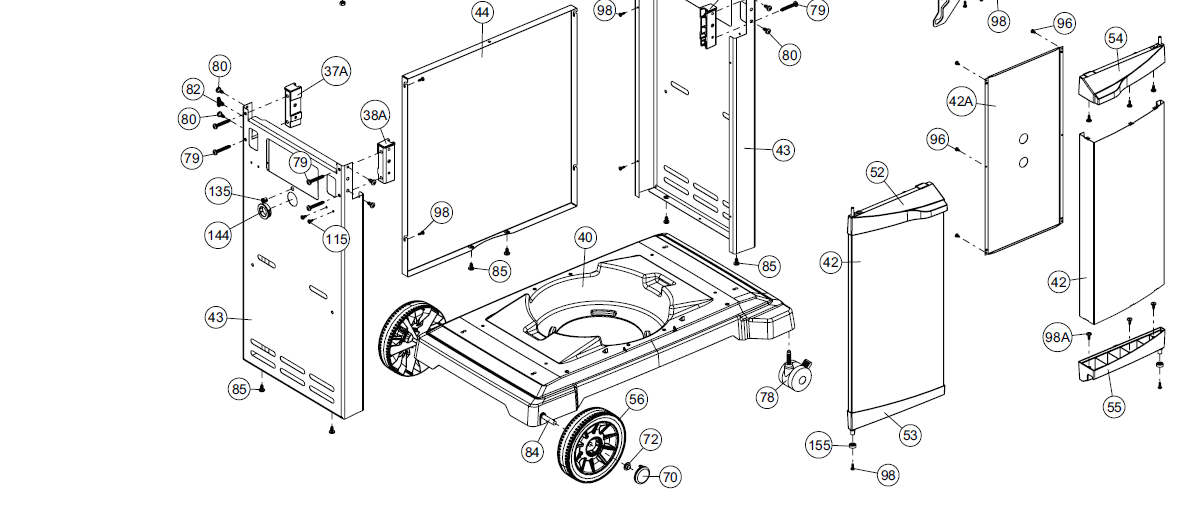

Grill Anatomy Image
SCREW-PHCS 1/4-20 X 3/4 A04
REAR BURNER SPRING
SCREW-PHCP 6-32X1/4 TY-F JS500
REAR BURNER ELECTRODE WIRE +
CASTING BOSS EXTENSION 340 +
BRACKET ROTIS MOTOR BLK
WING NUT STAMPED 10-24
SCREW PHCP #10-24 X 3/4- A04+
BRACKET ROTIS RIGHT BLK
NUT HEX BRASS 3/8 27 RB LINE
ORIFICE HOOD R/B 0.102MM LP
ELECTRODE W/WIRE +
SCREW-THCP 1/4-20 X 1-TY-C A04
SCREW-THCP 1/4-20 X 1-TY-C A04
BRACKET ROTIS LEFT BLK
HITCH PIN CLIP +
COLLECTOR BOX ASSEMBLY
SIDE BURNER BODY BASE
WIRE ELECTRODE S/B +
BURNER SIDE 50M GERMANY
SCREW M4x10
DIVIDER SS +
FLAV-R-WAVE 430 SS
GRID CI B 390 & 400 CASTINGS +
GRID UPPER PORCELAIN 390 A +
BURNER MAIN +
CLIP BURNER TUBE MOUNT SS
SCREW #10-24 QUAD PAN HEAD
LID-HANDLE BENT 500 ASSY +
SCREW 8 X 3/8 PAN HEAD
HEAT SHIELD - 10184-E124
SIDE BURNER GRID BLK
PLUG 1/2 HEYCO 6/6 NYLON
SIDE BURNER LID IR SS
CASTING TOP 390 +
HEAT INDICATOR PROBE LRG +
NAMEPLATE HI BROIL KING
LID INSERT 400 SS W/HOLE +

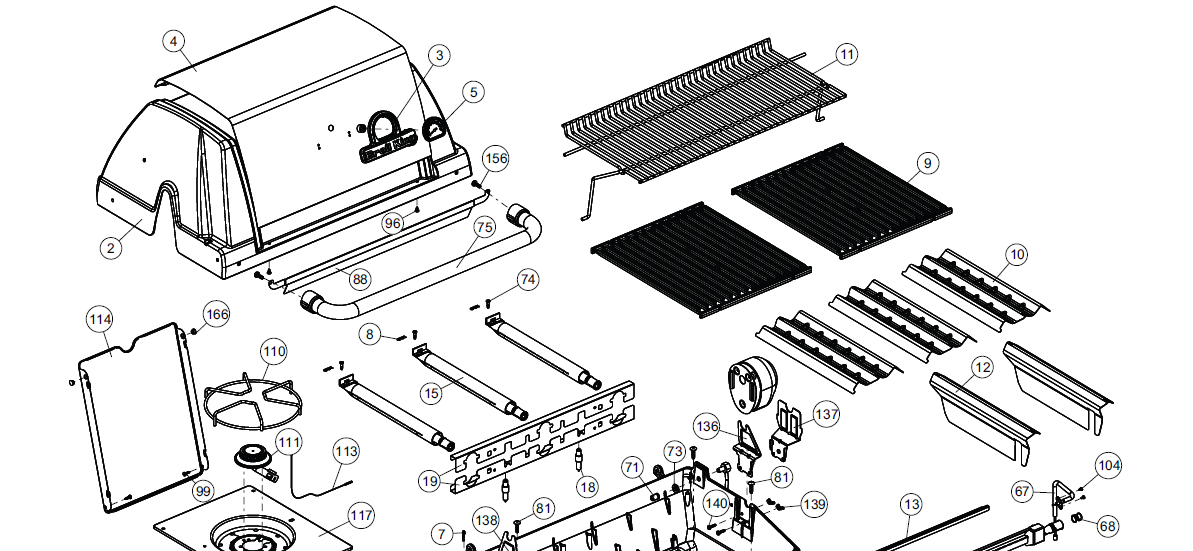

Grill Anatomy Image
BURNER TUBULAR W/IGNITION EUROPE
EDGE CAP CONTROL COVER RHS
CONTROL COVER SS 400 3V SB RB
CONTROL KNOB - BEZEL BLK
CONTROL KNOB BLK LRG +
SCREW #C TAPPING 1/4 20x1 3/8
SCREW #C TAPPING 1/4 20x1 3/8
CONTROL COVER SS 400 3V SB RB
EDGE CAP CONTROL COVER LHS
IGNITOR ELECTRONIC +
CONTROL ASSY 20.1KW 3V+SB+RB
HOSE ASSEMBLY PIGTAIL +
HAIRPIN COTTER SIDE BURNER +
HOSE SB W/0.81 ORIFICE
BOTTOM CASTING E402
HINGE PIN SPACER
HINGE PIN SIDE SHELF DROP DOWN
EDGE CAP SIDE SHELF
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW-PHCP 6-32X1/4 TY-F JS500
WASHER 8 200ID 0 1/32 X .438O

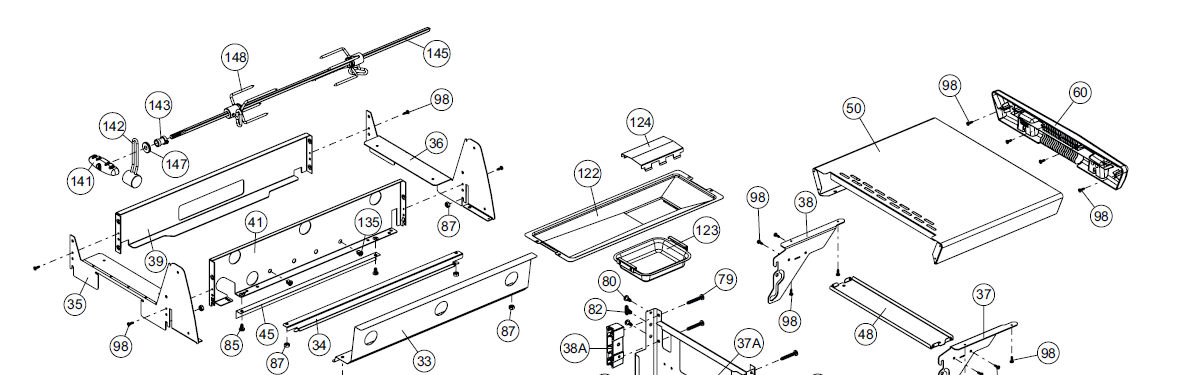

Grill Anatomy Image
EDGE CAP SIDE SHELF
SHELF BODY SS
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
SHELF SUPPORT BRACKET RHS +
SHELF SUPPORT BRACKET LHS +
SCREW PHCP 1/4 20x1.75 TYC A04
SHELF LOCK PIN
SCREW PHCP 1/4-20X5/8
GREASE PAN - BLACK
GREASE PAN SHIELD +
GREASE TRAY 340/401 BLK
BUSHING 3/8 HEYCO 6/6 NYLON
NUT HEX 1/4 20 JS500 +
NUT HEX 1/4 20 JS500 +
RADIATION SHIELD 400
GREASE TRAY SUPPORT 400
NUT HEX 1/4 20 JS500 +
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
ROTIS SPIT FORK 2PCS +
SPIT ROD ROTISSERIE 33
WASHER COUNTERWEIGHT ROTIS
ROTISSERIE BUSHING
ROTIS COUNTERWEIGHT ASSY
ROTISSERIE HANDLE +

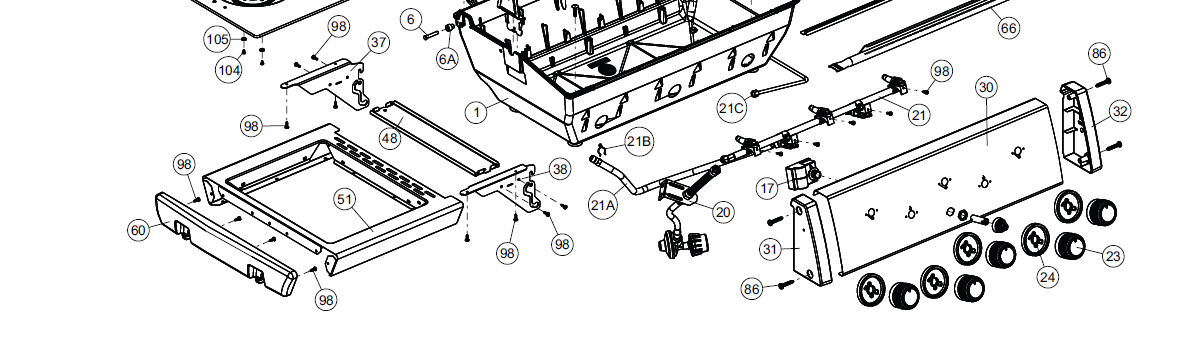

Grill Anatomy Image
SCREW 8 X 3/8 PAN HEAD
SCREW SHLDR #8X1/2 TY B A04
END CAP DOOR BOTTOM RIGHT A
END CAP DOOR BOTTOM LEFT A
END CAP DOOR TOP LHS W/MAGNET
SCREW PHCP #8 X 12 +
DOOR PIN CAP BOTTOM
CASTER 2 1/2
WHEEL 7
PUSH NUT 3/8
WHEEL CAP RESIN RED
AXLE 3/8 x 20 1/4 ZINC
BASE RESIN CABINET REV A +
SCREW PHCP #8 X 12 +
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW PHCP #10 24x3/8
S/B BUSHING SB 1.375 16 HEY
BUSHING 3/8 HEYCO 6/6 NYLON
SCREW PHCP 1/4 20x1.75 TYC A04
SCREW PHCP 1/4 20x1.75 TYC A04
SHELF LOCK PIN
SCREW PHCP 1/4-20X5/8
SCREW PHCP 1/4-20X5/8
SCREW PHCP 1/4-20X5/8
SHELF SUPPORT BRACKET LHS +
SHELF SUPPORT BRACKET RHS +
END CAP DOOR TOP RHS W/MAGNET
SCREW 8 X 3/8 PAN HEAD
SCREW PHCP #8 X 12 +
SCREW PHCP 1/4 20x1.75 TYC A04
SCREW PHCP #8 X 12 +

All Spare Parts for Signet 390

Pos Item description SKU Quantity 946882 Quantity 946883
1 FIREBOX ASSY 625 IQUE SS 10909-E402 1 1
2 LID ASSEMBLY 10473-E392 1 1
3 NAMEPLATE HI BROIL KING 10081-BK630 1 1
4 LID INSERT 10958-E400A 1 1
5 HEAT INDICATOR PROBE 10571-6 1 1
6 HINGE PIN 10240-15 2 2
6A HINGE PIN SPACER S21237 2 2
7 HITCH PIN CLIP  S21233 2 2
8 BURNER MOUNT CLIP S21242 3 3
9 GRID CI 10225-T436 2 2
10 FLAV-R-WAVE 10222-E407 3 3
11 GRID UPPER PORCELAIN 10225-E391 1 1
12 DIVIDER SS 10222-E401 2 2
13 CASTING BOSS EXTENSION 10184-R83 1 1
15 BURNER MAIN 10390-E20D 3 -
15 BURNER MAIN 10390-E20E - 3
17 IGNITOR ELECTRONIC 10342-247 1 1
18 ELECTRODE W/WIRE 10342-E12 4 4
19 COLLECTOR BOX ASSEMBLY 10342-E400A 1 1
20 HOSE ASSEMBLY 10111-16A 1 1
21 CONTROL ASSEMBLY 10444-E36D 1 -
21 CONTROL ASSEMBLY 10444-E36E - 1
21A HOSE SB S13470-073 1 -
21A HOSE SB S13470-081 - 1
21B HAIRPIN COTTER SIDE BURNER  Y-11230 1 1
21C 21C 10110-402 1 1
23 CONTROL KNOB 22001-768 5 5
24 CONTROL KNOB 10472-E38 5 5
30 CONTROL COVER 10194-E494SIG 1 1
31 EDGE CAP CONTROL COVER  10711-E34 1 1
32 EDGE CAP CONTROL COVER RHS 10711-E33
1 1
33 RADIATION SHIELD  10184-F96
1 1
34 GREASE TRAY SUPPORT 10184-F97
1 1
35 35 10184-E5011
1 1
36 36 10184-E5111
1 1
37 37 11184-E4511
2 2
37A SHELF SUPPORT BRACKET RHS 10184-E63
2 2
38 38 11184-E4411
2 2
38A SHELF SUPPORT BRACKET LHS  10184-E62
2 2
39 39 10956-E8811
1 1
40 BASE RESIN CABINET  10958-E81
1 1
41 41 10956-E5911
1 1
42 DOOR CABINET ASSY 10958-E79
2 2
42A 42A 10958-E8511
2 2
43 43 10958-E7611
2 2
44 44 10958-E9011
1 1
45 45 10184-E9311
 1 1
48 48 10184-E7211
2 2
50 SHELF BODY  10711-E92
1 1
51 51 10711-E93
1 1
52 END CAP DOOR TOP LHS 10184-E78A
1 1
53 END CAP DOOR BOTTOM LEFT A 10184-E76
1 1
54 END CAP DOOR TOP RHS W/MAGNET 10184-E79A
1 1
55 END CAP DOOR BOTTOM RIGHT A 10184-E77
1 1
56 WHEEL 7" W/GREY WALL 10892-931A 2 2
60 EDGE CAP SIDE SHELF 10711-E49
2 2
66 BURNER TUBULAR W/IGNITION EUROPE S13005AE
1 1
67 REAR BURNER ELECTRODE WIRE  S15508
1 1
68 REAR BURNER SPRING S21362
1 1
70 WHEEL CAP RESIN RED 32002-249
2 2
71 ORIFICE HOOD R/B 0.095MM 10696-095
1 -
71 ORIFICE HOOD R/B 0.102MM LP 10696-102
- 1
72 PUSH NUT 3/8 S21420
2 2
73 NUT HEX BRASS 3/8 27 RB LINE Y-11990
1 1
74 SCREW #10-24 QUAD PAN HEAD Y-11544S
5 5
75 LID-HANDLE BENT 500 ASSY  24005-12AB
1 1
78 CASTER 2 1/2" WHEE 10892-15
2 2
79 SCREW PHCP 1/4 20x1.75 Y-11561
8 8
80 SCREW PHCP 1/4-20X5/8" Y-11546
8 8
81 SCREW-THCP 1/4-20 Y-12860
4 4
82 SHELF LOCK PIN Y-12673
2 2
84 AXLE 3/8 x 20 1/4 S15165
1 1
85 SCREW 1/4 X 20X1/2 Y-12865
8 8
86 SCREW #C TAPPING 1/4 20x1 3/8 Y-11545
4 4
87 NUT HEX 1/4 20 JS500 Y-11793
6 6
88 HEAT SHIELD  10184-E124
1 1
96 SCREW 8 X 3/8 PAN HEAD S21125
16 16
98 SCREW PHCP #8 X 12 S21124
39 39
98A SCREW SHLDR #8X1/2  Y-12643
12 12
99 SCREW M4x10 Y-12641
2 2
104 SCREW-PHCP 6-32X1/4 Y-12835
4 4
105 WASHER Y-12853
2 2
110 SIDE BURNER GRID BLK 23009-951
1 1
111 BURNER SIDE 50M GERMANY 10390-E10D
1 -
111 SIDE BURNER W/ELECTRODE 10390-E10E
- 1
113 WIRE ELECTRODE S/B 10342-T16
1 1
114 SIDE BURNER LID IR SS 23000-253
1 1
115 SCREW PHCP #10 24x3/8 Y-29304
2 2
117 SIDE BURNER BODY BASE 23000-271
1 1
122 GREASE TRAY 340/401 BLK 57154-901
1 1
123 GREASE PAN - BLACK 52009-901
1 1
124 GREASE PAN SHIELD 52049-91
1 1
135 BUSHING 3/8 HEYCO 6/6 NYLON Y-12119
3 3
136 BRACKET ROTIS RIGHT BLK 11184-E341
1 1
137 SPIT ROD 10184-E421
1 1
138 BRACKET ROTIS LEFT BLK 11184-E331
1 1
139 WING NUT STAMPED 10-24 S21061
2 2
140 SCREW PHCP #10-24 X 3/4 Y-29306
2 2
141 ROTISSERIE HANDLE  S15271
1 1
142 ROTIS COUNTERWEIGHT ASSY S15270
1 1
143 ROTISSERIE BUSHING S15263
1 1
144 S/B BUSHING SB 1.375 Y-12220
1 1
145 SPIT ROD ROTISSERIE  S15257
1 1
147 WASHER COUNTERWEIGHT ROTIS S15299
1 1
148 ROTIS SPIT FORK 2PCS S15287
2 2
155 DOOR PIN CAP BOTTOM Y-12124
2 2
156 SCREW-PHCS 1/4-20 X 3/4 A04 Y-12310
2 2
166 PLUG 1/2 HEYCO 6/6 NYLON Y-12117
2 2
Back to the Grill selection page
