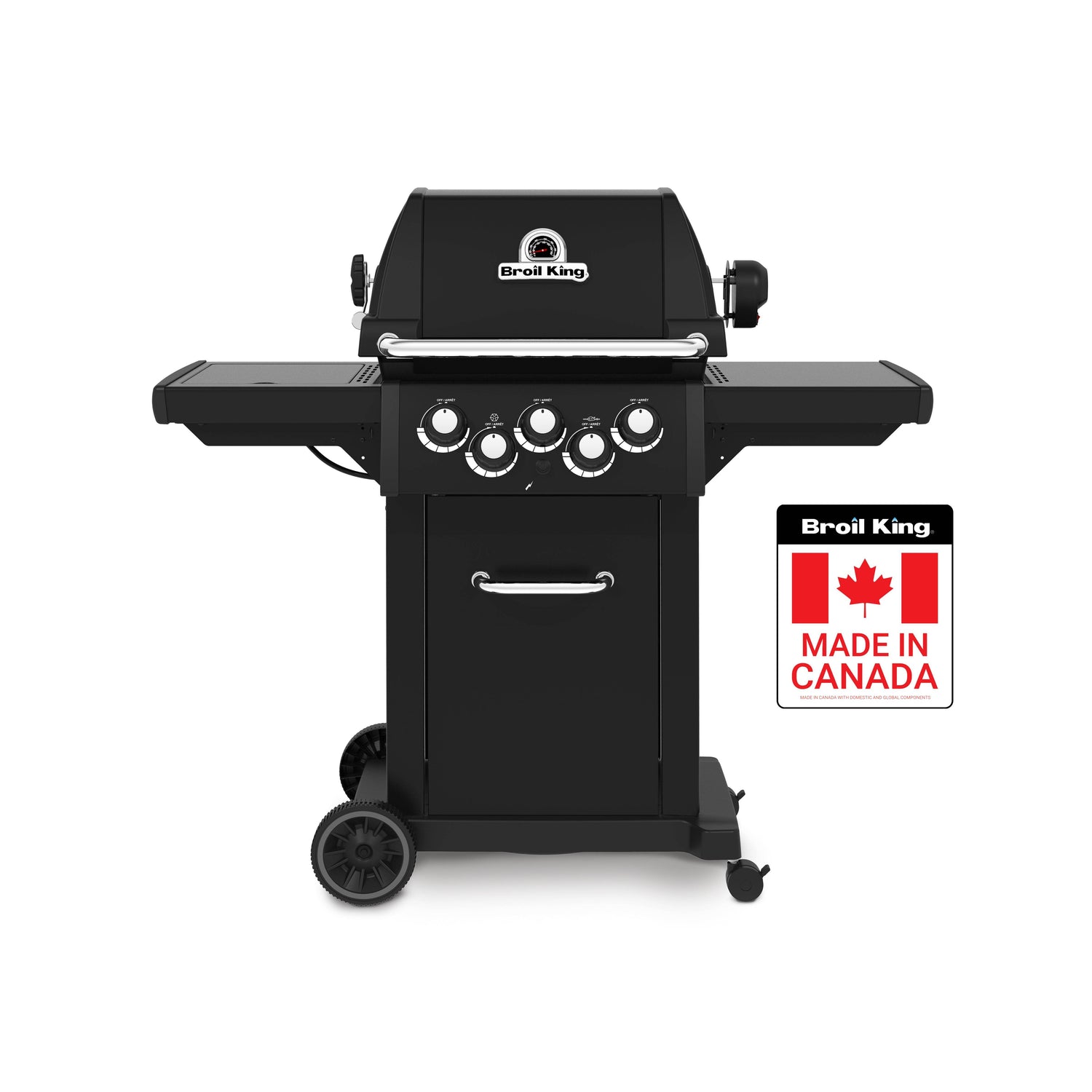

Broil King - Royal™ 390 Shadow

Royal 390 Shadow

Spare Parts for these models
824282SDW
824283SDW

You can click on each circle to go to the item's detail page and add the item to your shopping cart.
Use the table below to ensure the item fits to the corresponding model number.
The exploaded views and the item list apply to the newest model.

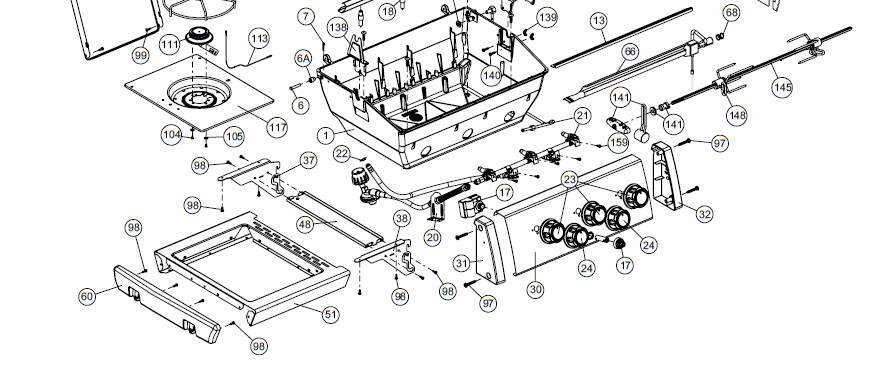

Grill Anatomy Image
ELECTRIC MOTOR
BRACKET ROTIS MOTOR BLK
BRACKET ROTIS RIGHT BLK
SCREW-THCP 1/4-20 X 1-TY-C A04
NUT HEX BRASS 3/8 27 RB LINE
COLLECTOR BOX 330 SS ASSY
BURNER MAIN +
CLIP BURNER TUBE MOUNT SS
SIDE BURNER GRID BLK
SCREW #10-24 QUAD PAN HEAD
SIDE BURNER LID B BLK
PLUG 1/2 HEYCO 6/6 NYLON
SCREW-PHCS 1/4-20 X 3/4 A04
DIVIDER SS - 340 CASTING
SCREW 8 X 3/8 PAN HEAD
SCREW 8 X 3/8 PAN HEAD
LID HANDLE BENT 340
FLAV-R-WAVE 430 SS
GRID 318/340/T35 CI
WARMING RACK 346 NICKEL CHROME
HEAT INDICATOR PROBE LRG +
NAMEPLATE HI BROIL KING
CASTING TOP 341
LID INSERT 340 TOP BLK

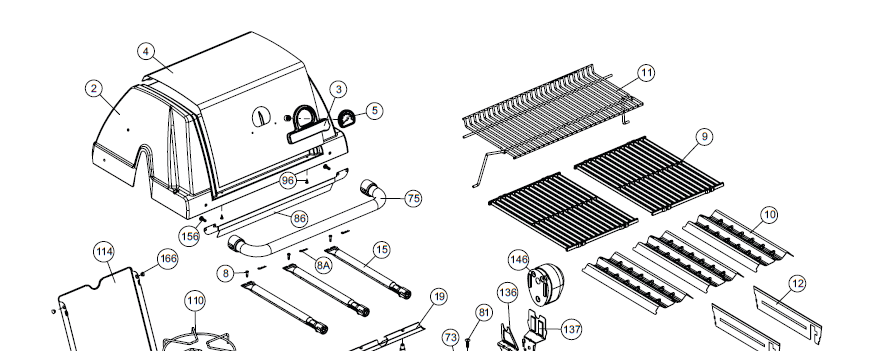

Grill Anatomy Image
SCREW-PHCP 6-32X1/4 TY-F JS500
WASHER 8 200ID 0 1/32 X .438O
SIDE BURNER BODY BASE
HAIRPIN COTTER SIDE BURNER +
BOTTOM CASTING 340 +
HINGE PIN SIDE SHELF DROP DOWN
WING NUT STAMPED 10-24
ELECTRODE W/WIRE +
BRACKET ROTIS LEFT BLK
HINGE PIN SPACER
WIRE ELECTRODE S/B +
BURNER SIDE 50M GERMANY
SCREW M4x10
HITCH PIN CLIP +
SIDE BURNER GRID

All Spare Parts for Royal 390 Shadow

Pos Item description SKU Quantity 824282SDW Quantity Quantity 824283SDW
1 FIREBOX 10909-E340 1 1
2 LID ASSEMBLY 10473-E341 1 1
3 SIDE BURNER GRID 10081-BK630 1 1
4 LID INSERT  10958-E341A 1 1
5 HEAT INDICATOR PROBE 10571-6 1 1
6 HINGE PIN SIDE SHELF  10240-15 2 2
6A HINGE PIN SPACER S21237 2 2
7 HITCH PIN CLIP S21233 2 2
8 BURNER SCREW Y-11544S 3 3
8A BURNER MOUNT CLIP S21242 3 3
9 GRID  10225-T342 2 2
10 FLAV-R-WAVE 10222-E407 3 3
11 WARMING RACK 10225-E346 1 1
12 DIVIDER  10222-E301 2 2
13 CASTING BOSS EXTENSION 10184-R83 1 1
15 BURNER MAIN  10390-E20D 3 -
15 BURNER MAIN  10390-E20E - 3
17 IGNITOR  10342-247 1 1
18 ELECTRODE  10342-E12 2 2
19 COLLECTOR BOX 22024-903A 1 1
20 HOSE ASSEMBLY 10111-16A 1 1
21 VALVE ASSY 29004-072 1 -
21 VALVE ASSY 29004-073 - 1
22 HAIRPIN COTTER SIDE BURNER  Y-11230 1 1
23 KNOB  52002-298A 3 3
24 CONTROL KNOB  52001-298A 2 2
30 30 10194-F1916 1 1
31 EDGE CAP - LH
10711-E34 1 1
32 EDGE CAP - RH
10711-E33 1 1
33 RADIATION SHIELD 10184-E96 1 1
34 SUPPORT GREASE TRAY 10184-E97 1 1
35 35 10184-E5011 1 1
36 36 10184-E5111 1 1
37 37 11184-E4511 2 2
37A SHELF SUPPORT BRACKET LHS 10184-E62 2 2
38 38 11184-E4411 2 2
38A SHELF SUPPORT BRACKET RHS  10184-E63 2 2
39 39 10956-E4211 1 1
40 PEDESTAL RESIN BASE  10958-E71 1 1
41 41 10956-E3111 1 1
43 43 10958-E7611 2 2
45 BRACKET DOOR CATCH  10184-E9811 1 1
48 48 10184-E7211 2 2
50 50 10711-E8511 1 1
51 51 10711-E8711 1 1
56 WHEEL  10892-931A 2 2
60 EDGE CAP SIDE SHELF 10711-E49 2 2
66 BURNER TUBE S13006AE 1 1
67 DOOR HANDLE BEZEL 21070-13 2 2
68 REAR BURNER SPRING S21362 1 1
69 DOOR ASSEMBLY 10958-E48AB 1 1
70 HARDWARE BAG 10070-E13 1 1
72 PUSH NUT S21420 2 2
73 NUT HEX  Y-11990 1 1
74 WHEEL CAP 32002-249 2 2
75 LID HANDLE  24009-12AB 1 1
77 WASHER  Y-12857 2 2
78 CASTER  10892-15 2 2
79 SCREW  Y-11563 8 8
80 SCREW  Y-11546 8 8
81 SCREW-THCP Y-12860 4 4
82 SHELF LOCK PIN Y-12673 2 2
83 SCREW  Y-12865 6 6
84 AXLE  S15165 1 1
86 HEAT SHIELD 10184-E09 1 1
87 NUT Y-11793 4 4
96 SCREW S21125 4 4
97 SCREW Y-11545 4 4
98 SCREW S21124 32 32
99 SCREW
 Y-12641 2 2
104 SCREW PHCP Y-12835 2 2
105 WASHER Y-12853 2 2
110 SIDE BURNER GRID 23009-951 1 1
111 BURNER SIDE 50M GERMANY 10390-E10D 1 -
111 BURNER SIDE EUROPE 10390-E10E - 1
113 WIRE ELECTRODE 10342-T16 1 1
114 SIDE BURNER LID 23000-2511 1 1
115 SCREW PHCP
 Y-29304 2 2
117 SIDE BURNER BODY BASE 23000-271 1 1
122 GREASE TRAY 57154-901 1 1
123 GREASE PAN 52009-901 1 1
135 BUSHING  Y-12119 3 3
136 BRACKET ROTIS RIGHT  11184-E341 1 1
137 BRACKET ROTIS MOTOR 10184-E421 1 1
138 BRACKET ROTIS LEFT  11184-E331 1 1
139 WING NUT  S21061 2 2
140 SCREW PHCP Y-29306 2 2
141 ROTISSERIE HARDWARE PACK S15278 1 1
144 S/B BUSHING Y-12220 1 1
145 SPIT ROD ROTISSERIE S15264 1 1
146 ELECTRIC MOTOR S15246 1 1
148 ROTIS SPIT FORK  S15287 2 2
149 DOOR PIN 10240-20 2 2
152 MAGNET Y-12222 1 1
153 SNAP IN MAGNET Y-12223
2 2
156 SCREW Y-12310 4 4
159 SCREW #8 32x3/8 S21136 5 5
164 DOOR PIN CAP BOTTOM Y-12124 1 1
165 SCREW 1/4-20  Y-11551 1 1
166 ELECTRODE ASSEMBLY Y-12117 2 2
