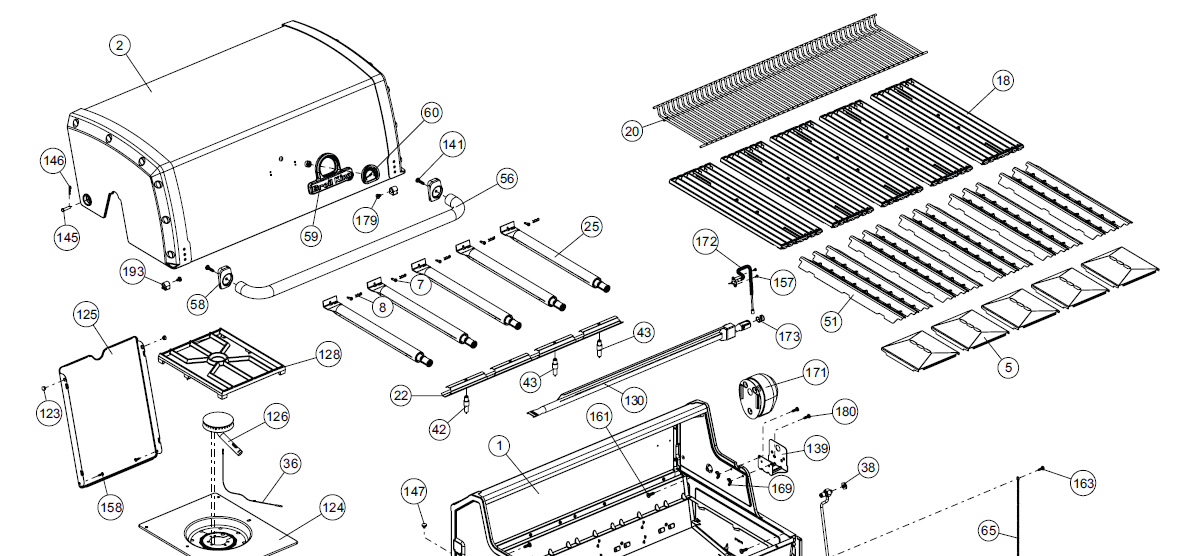

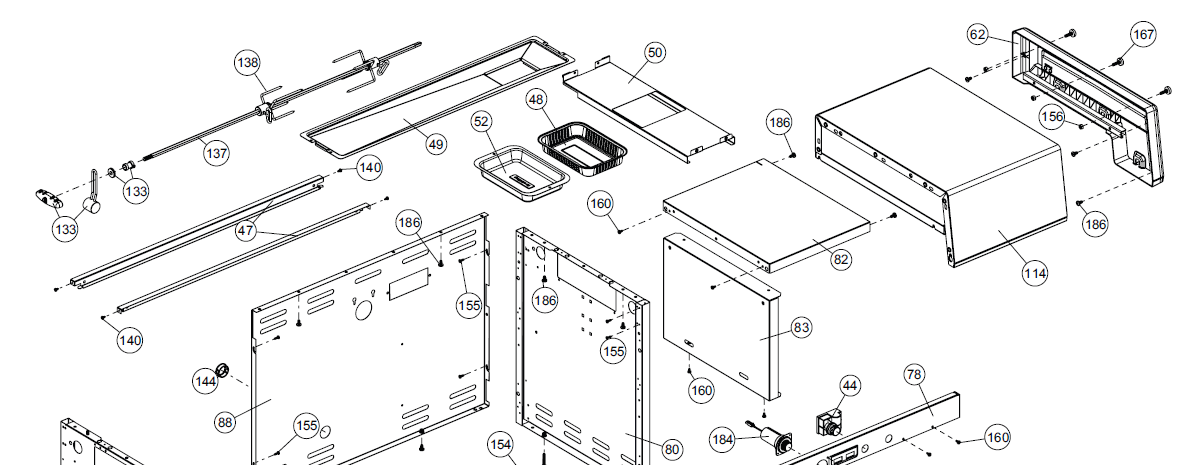

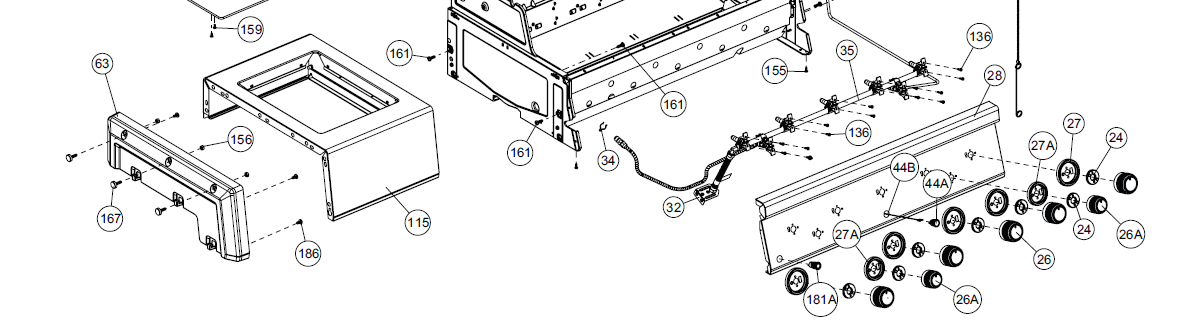

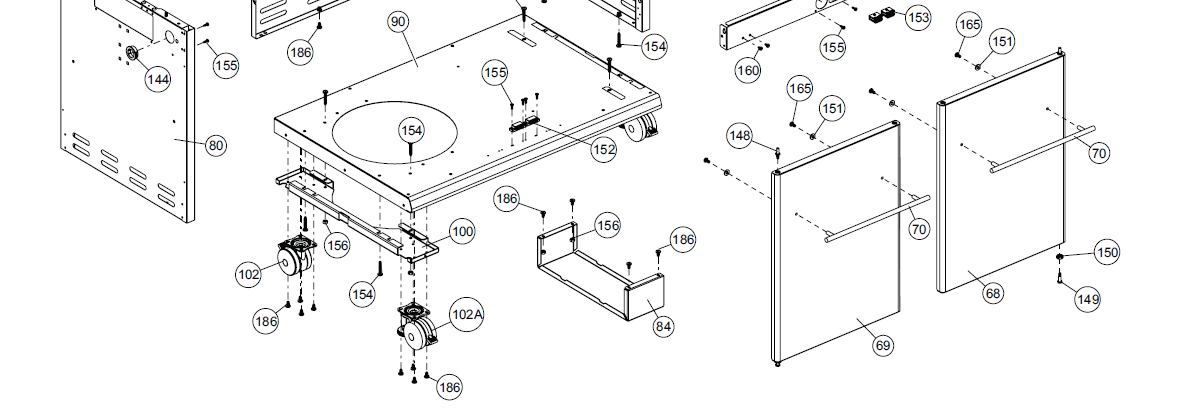

All Spare Parts for Regal 590
| Pos | Item description | SKU | Quantity 998282 | Quantity 998283 |
|---|---|---|---|---|
| 1 | FIREBOX ASSY 625 IQUE SS | 27006-003 | 1 | 1 |
| 2 | LID ASSEMBLY |
86306-301 |
1 | 1 |
| 5 | GREASE SHIELD | 27249-904 | 5 | 5 |
| 7 | BURNER SCREW | Y-11544S | 5 | 5 |
| 8 | BURNER MOUNT CLIP | S21242 | 5 | 5 |
| 18 | CAST STAINLESS STEEL GRID | 22005-281 | 5 | 5 |
| 20 | GRID - WARMING RACK | 22006-992 | 1 | 1 |
| 22 | COLLECTOR BOX ASSEMBLY | 22026-903A | 1 | 1 |
| 24 | LED ASSY iQUE SMALL | 22051-91A | 7 | 7 |
| 25 | BURNER LP | 22929-103D | 5 | - |
| 25 | BURNER LP | 22929-103LP | - | 5 |
| 26 | CONTROL KNOB |
22001-765A |
5 | 5 |
| 26A | CONTROL KNOB |
22001-665A |
2 | 2 |
| 27 | CONTROL BEZEL |
22002-264 |
5 | 5 |
| 27A | BEZEL |
22001-164 |
2 | 2 |
| 28 | CONTROL COVER | 22006-883 | 1 | 1 |
| 32 | HOSE ASSEMBLY | 10111-16A | 1 | 1 |
| 34 | HAIRPIN COTTER SIDE BURNER |
Y-11230 |
1 | 1 |
| 35 | VALVE ASSY |
29006-072 |
1 | - |
| 35 | VALVE ASSY |
29006-075 |
- | 1 |
| 36 | ELECTRODE – SIDE BURNER | 10342-T21 | 1 | 1 |
| 38 | HEX NUT | Y-11990 | 1 | 1 |
| 42 | ELECTRODE W/WIRE |
10342-E22 |
1 | 1 |
| 43 | ELECTRODE | 10342-E13 | 2 | 2 |
| 44 | ELECTRODE IGNITOR | 10342-45 | 1 | 1 |
| 44A | IGNITOR HARNESS |
25070-93 |
1 | 1 |
| 44B | IGNITOR BUTTON | 25070-92 | 1 | 1 |
| 47 | GREASE RAILS | 21036-991 | 2 | 2 |
| 48 | GREASE PAN | 52004-007 | 1 | 12 |
| 49 | GREASE TRAY | 27056-901 | 1 | 1 |
| 50 | 50 | 22051-001 | 1 | 1 |
| 51 | FLAV-R-WAVE | 22009-103 | 5 | 5 |
| 52 | GREASE PAN | 51009-007 | 1 | 1 |
| 56 | HANDLE | 24006-12A | 1 | 1 |
| 58 | HANDLE END CAP | 54009-936 | 2 | 2 |
| 59 | NAMEPLATE | 10081-BK630 | 1 | 1 |
| 60 | HEAT INDICATOR PROBE | 10571-6 | 1 | 1 |
| 62 | END CAP SHELF RHS RESIN | 23189-018 | 1 | 1 |
| 63 | END CAP SHELF LHS RESIN | 23189-038 | 1 | 1 |
| 65 | MATCH LIGHT - STICK | 20005-000 | 1 | 1 |
| 68 | DOOR ASSY 625 IR RHS BLK |
27306-211A |
1 | 1 |
| 69 | DOOR ASSY 625 IR LHS BLK |
27306-231A |
1 | 1 |
| 70 | HANDLE END CAP | 76106-933A | 2 | 2 |
| 78 | TOP MAGNET-BRACKET 625 BLK | 21336-111 | 1 | 1 |
| 80 | SIDE PANEL | 21109-901R | 2 | 2 |
| 82 | CABINET SHELF | 25208-201 | 1 | 1 |
| 83 | DRAWER CENTER MOUNT | 21036-901 | 1 | 1 |
| 84 | BRACKET TANK BLACK 500/625/750 | 21039-301 | 1 | 1 |
| 88 | PANEL - REAR | 21306-921R | 1 | 1 |
| 90 | BASE | 51096-931 | 1 | 1 |
| 100 | BRACKET – CASTOR SUPPORT | 21039-911 | 2 | 2 |
| 102 | CASTOR | 10892-23 | 2 | 2 |
| 102A | CASTOR | 10892-285 | 2 | 2 |
| 114 | SHELF | 23109-883 | 1 | 1 |
| 115 | SHELF-SIDE BURNER | 23109-853 | 1 | 1 |
| 123 | PLUG 1/2 | Y-12117 | 2 | 2 |
| 124 | SIDE BURNER BODY BASE |
23000-271 |
1 | 1 |
| 125 | COVER-SIDE BURNER | 23000-253 | 1 | 1 |
| 126 | SIDE BURNER |
10390-R81D |
1 | - |
| 126 | SIDE BURNER |
10390-R81A |
- | 1 |
| 128 | SIDE BURNER TRIVET |
23009-99 |
1 | 1 |
| 130 | BURNER ROTISSERIE | 27906-354 | 1 | 1 |
| 133 | HANDLE | S15278 | 1 | 1 |
| 136 | SCREW |
S21128S |
14 | 14 |
| 137 | SPIT ROD | S15259 | 1 | 1 |
| 138 | 4 PRONG FORKS | S15287 | 2 | 2 |
| 139 | ROTISSERIE BRACKET | 20006-000 | 1 | 1 |
| 140 | SCREW # 8 X 1/2 | S21125 | 4 | 4 |
| 141 | SCREW 1/4-20X 3/4 | Y-11559 | 2 | 2 |
| 144 | BUSHING | Y-12220 | 1 | 1 |
| 145 | HINGE PIN | S21235 | 2 | 2 |
| 146 | HITCH PIN CLIP | S21233 | 2 | 2 |
| 147 | LID BUMPER | Y-11231 | 2 | 2 |
| 148 | DOOR PIN | 10240-20 | 2 | 2 |
| 149 | DOOR PIN | Y-11551 | 2 | 2 |
| 150 | DOOR PIN CAP | Y-12124 | 2 | 2 |
| 151 | SCREW M8 SHOULDER | Y-12857 | 4 | 4 |
| 152 | MAGNET | Y-12222 | 2 | 2 |
| 153 | SNAP IN MAGNET | Y-12223 | 2 | 2 |
| 154 | SCREW 1/4-20 X 1-1/2 | Y-11560 | 8 | 8 |
| 155 | SCREW #8 X 1/2 | S21124 | 16 | 16 |
| 156 | NUT 1/4-20 | Y-11793 | 14 | 14 |
| 157 | SCREW #6-32 X 1/4 | Y-12835 | 4 | 4 |
| 158 | SHOULDER SCREW #8-32 | Y-12641 | 2 | 2 |
| 159 | SCREW |
Y-12871 |
2 | 2 |
| 160 | SCREW #10-24 X 3/8 | Y-29304 | 8 | 8 |
| 161 | SCREW #10-24 | Y-12310 | 8 | 8 |
| 163 | SCREW #10-24 X 5/8 | S35094 | 1 | 1 |
| 165 | SCREW M6X12MM BLK | Y-11570 | 4 | 4 |
| 167 | BOLT CARRIAGE 1/4-20 x 1 UNC | Y-11981 | 6 | 6 |
| 169 | WING NUT | S21061 | 2 | 2 |
| 171 | ROTISSERIE MOTOR | S15246 | 1 | - |
| 172 | ELECTRODE ASSEMBLY | S15508 | 1 | 1 |
| 173 | SPRING | S21362 | 1 | 1 |
| 179 | SCREW | Y-12855 | 2 | 2 |
| 180 | SCREW #10 24x5/8 FLAT TOP | S35095 | 2 | 2 |

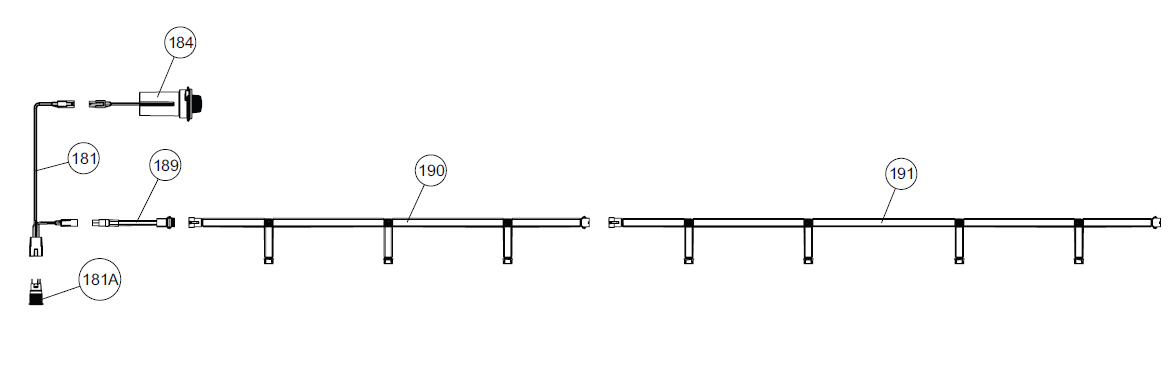

| 181 | HARNESS SWITCH | 25030-73 | 1 | 1 |
| 181A | LIGHT SWITCH | 25070-95 | 1 | 1 |
| 184 | BATTERY PACK | 25080-80 | 1 | 1 |
| 186 | SCREW 1/4-20 X 1/2 | Y-12865 | 34 | 34 |
| 189 | LED WIRE ADAPTER | 25020-95 | 1 | 1 |
| 190 | WIRE - LED LIGHTS | 25020-79 | 1 | 1 |
| 191 | HARNESS WIRE | 25020-81 | 1 | 1 |
| 193 | STOP BUMPER - SILICONE | Y-11239 | 2 | 2 |
