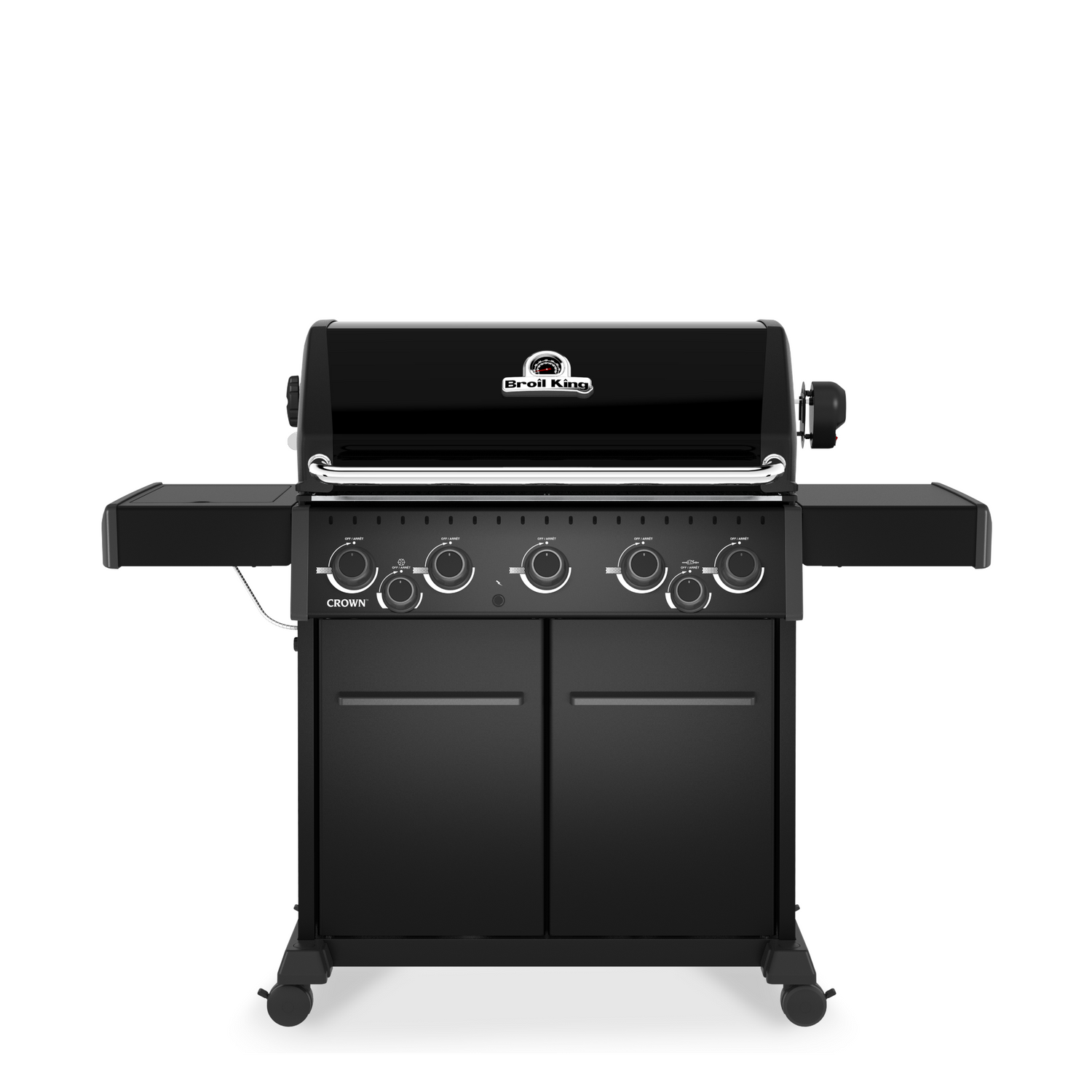

Crown 590 Shadow

Spare Parts for these models
866182
866183

You can click on each circle to go to the item's detail page and add the item to your shopping cart.
Use the table below to ensure the item fits to the corresponding model number.
The exploaded views and the item list apply to the newest model.

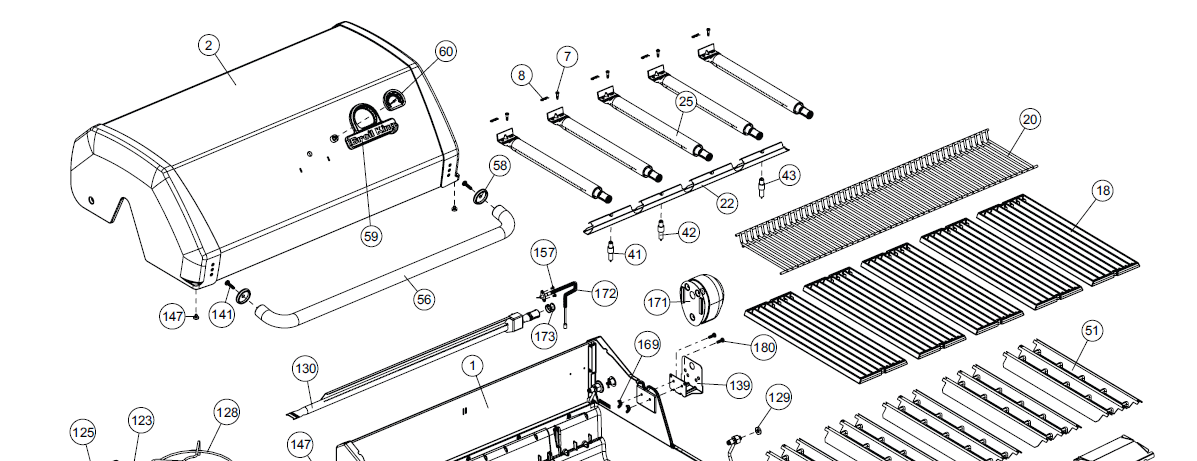

Grill Anatomy Image
COLLECTOR BOX 1 1/4
ELECTRODE W/WIRE 38
ELECTRODE W/WIRE 22
ELECTRODE W/WIRE
WARMING RACK 550 PORC +
COOKING GRID CI CROWN
FLAV-R-WAVE SS +
SCREW #10 24x5/8 FLAT TOP
HARDWARE BAG ROTIS BRKT ASSY
NUT HEX BRASS 3/8 27 RB LINE
WING NUT STAMPED 10-24
ELECTRIC MOTOR
SCREW #14 X 3/4 HEX HEAD
REAR BURNER SPRING
SCREW-PHCP 6-32X1/4 TY-F JS500
HANDLE LID ASSY 625
LID BUMPER ROUND BLK
REAR BURNER TUBULAR W/DEFLCTOR
SIDE BURNER GRID PORC
PLUG 1/2 HEYCO 6/6 NYLON
COVER SIDE BURNER BLACK
BOLT THCP 1/4-20X1
LID BUMPER ROUND BLK
BURNER BARON
SCREW #10-24 QUAD PAN HEAD
CLIP BURNER TUBE MOUNT SS
HANDLE RING
NAMEPLATE HI BROIL KING
HEAT INDICATOR PROBE LRG +
LID ASSEMBLY 550 BLACK

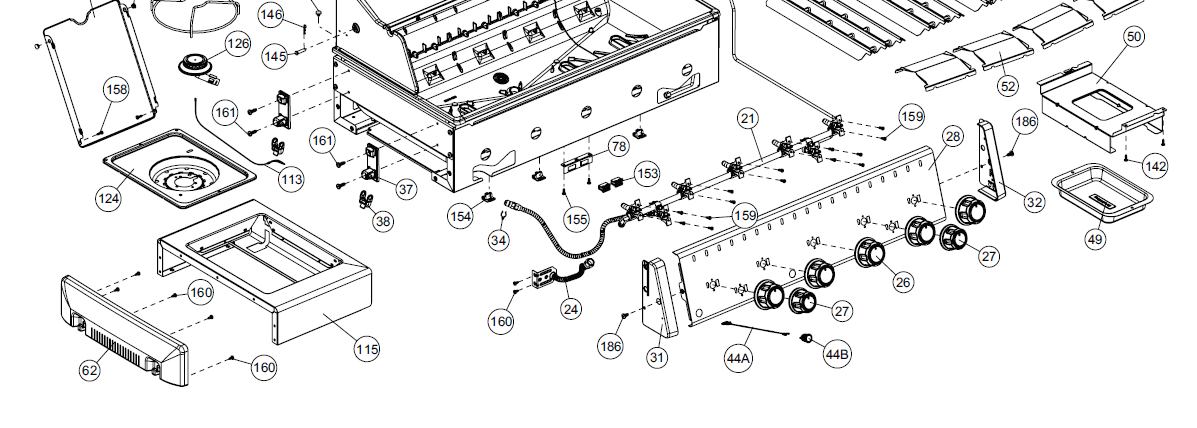

Grill Anatomy Image
GREASE RAIL B2 BLACK
GREASE SHIELD B2 SS
SCREW #8 32 X 7/16 SS
SCREW #8 32 X 7/16 SS
CONTROL COVER B550 5V BLACK
SCREW 8 X 3/8 PAN HEAD
GREASE PAN BARON
END CAP CONTROL COVER R RESIN
CONTROL KNOB LARGE BLACK
CONTROL KNOB SMALL BLACK RESIN
CONTROL KNOB SMALL BLACK RESIN
IGNITOR BUTTON BLK
BI IGNITOR HARNESS 500/625
END CAP CONTROL COVER L RESIN
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
HOSE ASSEMBLY PIGTAIL +
CONTROL ASSEMBLY
BRKT MAGNET B440/550 ASSY
MAGNET SNAP IN - DOOR
SCREW PHCP #8 X 12 +
HAIRPIN COTTER SIDE BURNER +
CLIP WIRE BARON RESIN
BRACKET SHELF SUPPORT RESIN
CLIP SHELF LOCK RESIN
ELECTRODE WIRE S/B 35
SHELF END CAP RHS OR LHS
SCREW PHCP #10 24x3/8
SCREW PHCP #10 24x3/8
SCREW PHCP #10 24x3/8
SCREW-PHCS 1/4-20 X 3/4 A04
SCREW-PHCS 1/4-20 X 3/4 A04
SIDE BURNER BODY 330/440 BLK
HITCH PIN CLIP +
HINGE PIN W/HOLE
BURNER SIDE 50M GERMANY
SCREW M4x10

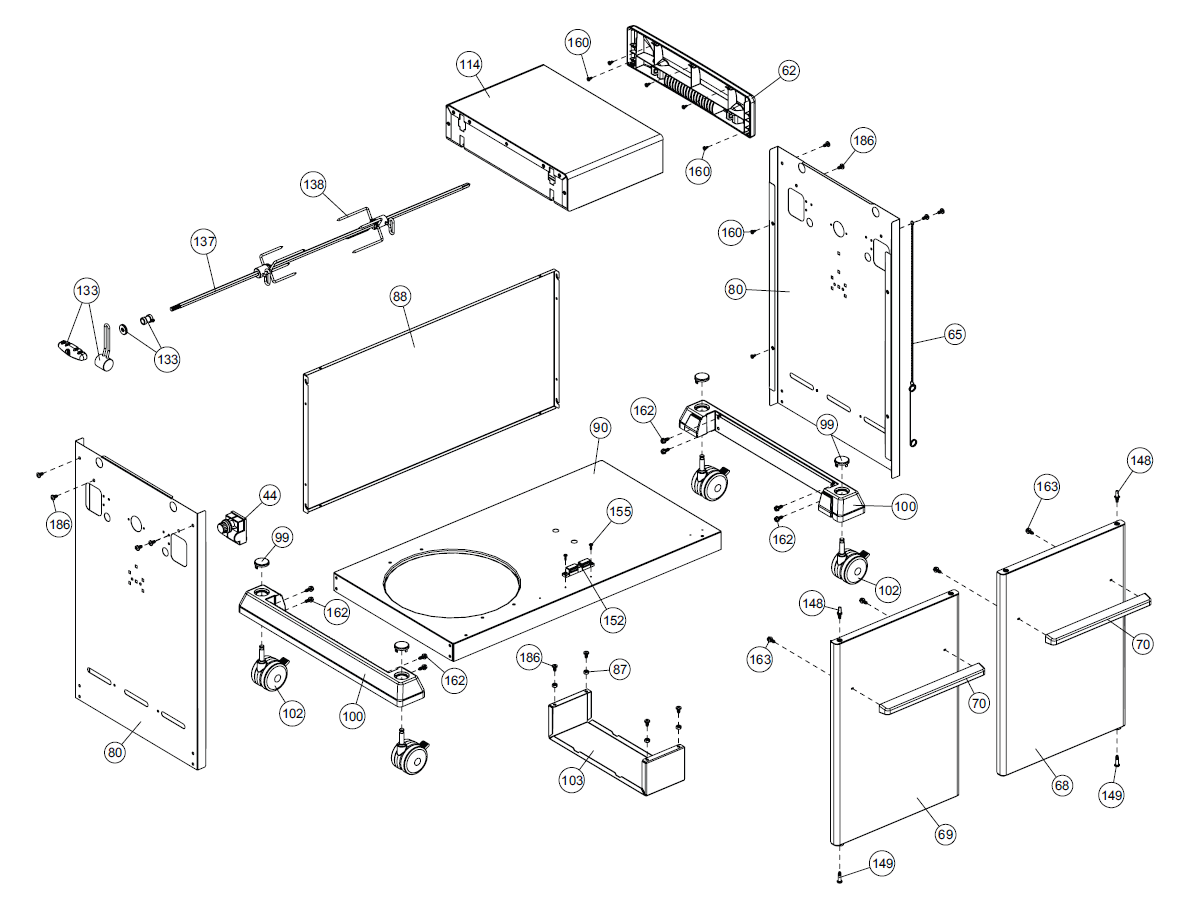

Grill Anatomy Image
SHELF END CAP RHS OR LHS
SHELF ASSEMBLY CROWN RHS BLACK
SCREW PHCP #10 24x3/8
SCREW PHCP #10 24x3/8
SCREW PHCP #10 24x3/8
SIDE PANEL B BLACK
DOOR PIN TOP
HARDWARE BAG STICK & CHAIN SS
BLACK WHEEL CAPS
SCREW PHCP #8 X 12 +
BRACKET CASTER BARON
SCREW 1/4-20 X1 HEX/ROB COMBO
SCREW 1/4-20 X1 HEX/ROB COMBO
DOOR PIN TOP
SCREW HEX WASHER HEAD #14x3/4
SCREW HEX WASHER HEAD #14x3/4
MAGNET B440/550 BARON
NUT HEX 1/4 20 JS500 +
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
BRACKET CASTER BARON
SCREW #14 X 3/4 HEX HEAD
SCREW #14 X 3/4 HEX HEAD
SCREW #14 X 3/4 HEX HEAD
SCREW #14 X 3/4 HEX HEAD
CASTER 3
CASTER 3
BLACK WHEEL CAPS
IGNITOR - QUINTUPLE
SIDE PANEL B BLACK
SCREW 1/4 X 20X1/2 TYPE-C PHCP
ROTIS SPIT FORK 2PCS +
SPIT ROD 37
ROTISSERIE HARDWARE PACK
ROTISSERIE HARDWARE PACK

All Spare Parts for Crown 590 Shadow

Pos Item description SKU Quantity 866182 Quantity 866183
1 FIREBOX 52006-101
1 1
2 LID ASSEMBLY 56006-801
1 1
7 BURNER SCREW Y-11544S 5 5
8 BURNER MOUNT CLIP S21242 5 5
18 CAST STAINLESS STEEL GRID 52001-981
5 5
20 GRID - WARMING RACK 52006-991
1 1
21 CONTROL ASSEMBLY
59806-072
1 -
21 CONTROL ASSEMBLY 59806-073
- 1
22 COLLECTOR BOX ASSEMBLY 22026-903A 1 1
24 CONNECTOR HOSE 10111-16A
1 1
25 BURNER LP 52929-104D 5 -
25 BURNER EU 52929-104E - 5
26 CONTROL KNOB 52002-291A
5 5
27 CONTROL KNOB 52001-291A
2 2
28 CONTROL COVER 52026-3011CRO
1 1
31 EDGE CAP - LH
52009-918
1 1
32 EDGE CAP - RH
52009-938
1 1
34 HAIRPIN COTTER SIDE BURNER Y-11230 1 1
37 BRACKET SHELF SUPPORT 53139-908 4 4
38 CLIP SHELF LOCK  Y-12620 4 4
41 ELECTRODE W/WIRE 10342-E13 1 1
42 ELECTRODE 10342-E22
1 1
43 ELECTRODE 10342-E38 1 1
44 IGNITOR ELECTRONIC QUADRUPLE 10342-45
1 1
44A IGNITOR HARNESS 25070-925
 1 1
44B IGNITOR BUTTON 25070-931
1 1
49 GREASE PAN 51009-007 1 1
50 GREASE RAIL 52060-1011
2 2
51 FLAV-R-WAVE 52009-104 5 5
52 GREASE PAN 52149-004
4 4
56 HANDLE 24006-12A 1 1
58 HANDLE END CAP 24009-936
2 2
59 NAMEPLATE 10081-BK630 1 1
60 HEAT INDICATOR PROBE  10571-6 1 1
62 END CAP SHELF RHS RESIN 53409-138 2 2
65 MATCH LIGHT - STICK 20005-000 1 1
68 DOOR ASSY  51276-2111A 1 1
69 DOOR ASSY  51276-2311A 1 1
70 HANDLE END CAP 51476-138 2 2
78 MAGNET BRACKET
56039-214A
1 1
80 SIDE PANEL 51189-1011A
2 2
87 BRACKET TANK BLACK 500/625/750 Y-11793 4 4
88 PANEL - REAR 51386-2011 1 1
90 BASE 51626-1311 1 1
99 CASTOR BRACKET CAP
32001-151 4 4
100 BRACKET – CASTOR SUPPORT 51639-108 2 2
102 CASTOR 10892-286 4 4
103 BRACKET TANK  21039-3011 1 1
113 WIRE ELECTRODE 10342-T21
1 1
114 SHELF ASSY 53109-1111
1 1
115 SHELF - SB - LEFT
53109-1511
1 1
123 BUSHING
Y-12117 2 2
124 SIDE BURNER BODY
53004-271
1 1
125 COVER-SIDE BURNER 53000-2511
1 1
126 INFRARED SIDE BURNER 10390-E10D
1 -
126 INFRARED SIDE BURNER 10390-E10E
- 1
128 GRID 53009-951
1 1
129 NUT Y-11990 1 1
130 BURNER ROTISSERIE 27906-354 1 1
133 ROTISSERIE HARDWARE
S15278 1 1
137 SPIT ROD S15259 1 1
138 4 PRONG FORKS S15287 2 2
139 ROTISSERIE BRACKET 20006-000 1 1
141 SCREW 1/4-20X 3/4 Y-11559 2 2
142 SCREW S21125 2 2
145 HINGE PIN S21235 2 2
146 HITCH PIN CLIP S21233 2 2
147 LID BUMPER Y-11231 4 4
148 DOOR PIN 10240-20 2 2
149 DOOR PIN Y-11551 2 2
152 MAGNET Y-12229 1 1
153 SNAP IN MAGNET Y-12223
2 2
154 WIRE CLIP
Y-12132
3 3
155 SCREW #8 X 1/2 S21124 4 4
157 SCREW #6-32 X 1/4 Y-12835 4 4
158 SHOULDER SCREW #8-32 Y-12641 2 2
159 SCREW S21127S
14 14
160 SCREW #10-24 X 3/8 Y-29304 16 16
161 SCREW #10-24 Y-12310 8 8
162 SCREW HEX WASHER  S21088 8 8
163 SCREW S21084 4 4
169 WING NUT S21061 2 2
171 ROTISSERIE MOTOR S15246 1 -
172 ELECTRODE ASSEMBLY S21088
1 1
173 SPRING S21362 1 1
180 SCREW #10 24x5/8 FLAT TOP S35095 2 2
181 HARNESS SWITCH 25030-73 1 1
186 SCREW 1/4-20 X 1/2 Y-12865 14 14
