Find all Spare Parts of your Grill

Select your grill from the menu below to view the exploded view and the spare parts of your grill.

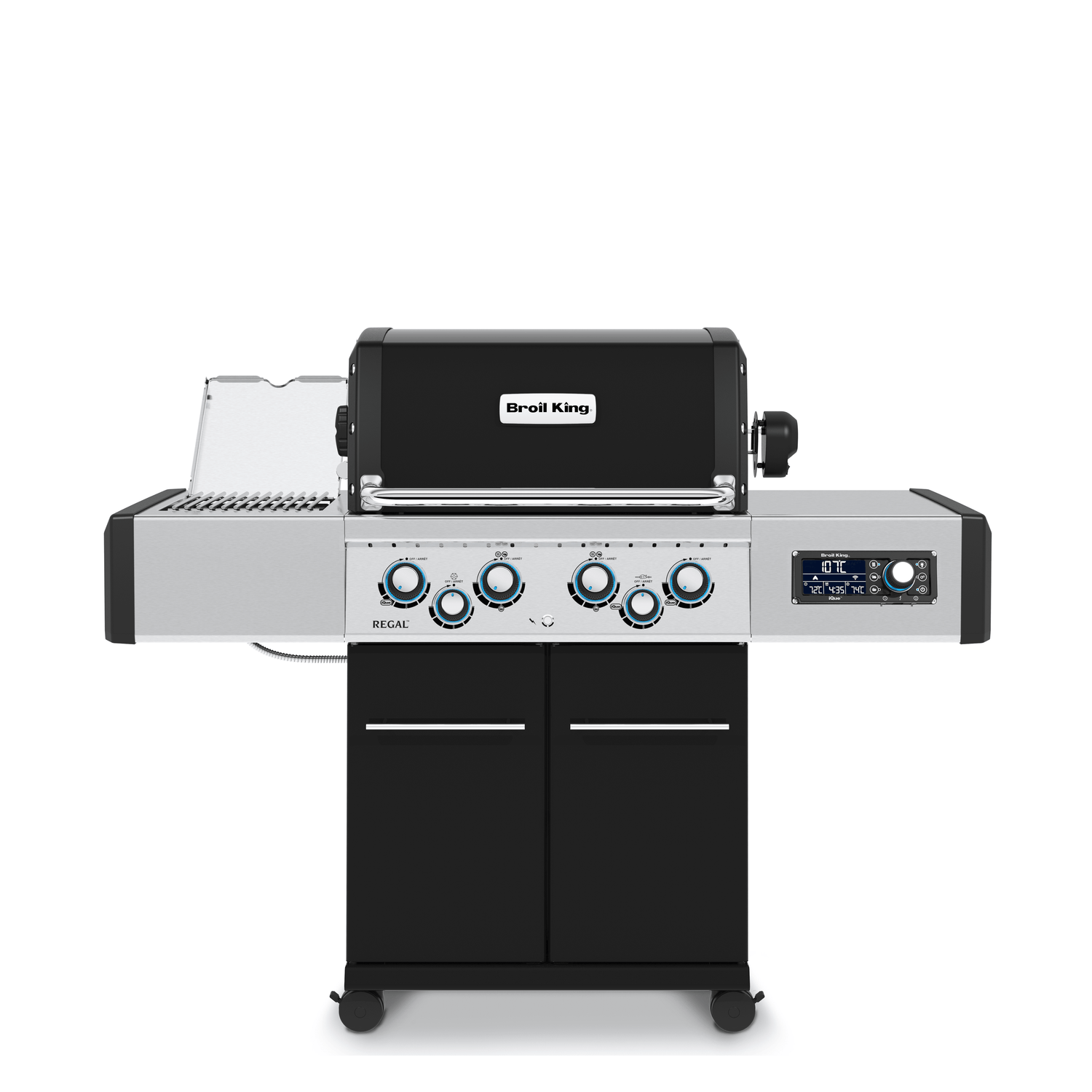

Broil King - Regal™ Q 490 IR

Regal Q 490 IR

For models

687282
687283

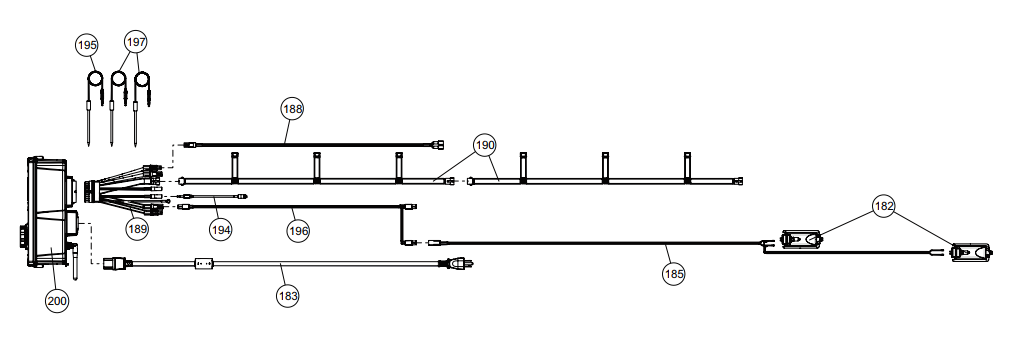

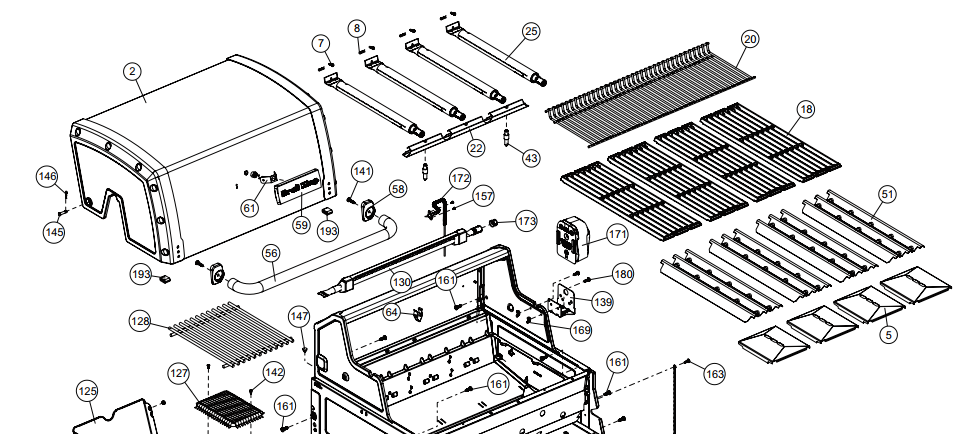

Grill Anatomy Image
SCREW #10 24x5/8 FLAT TOP
ELECTRIC MOTOR
REAR BURNER SPRING
SCREW-PHCP 6-32X1/4 TY-F JS500
REAR BURNER ELECTRODE WIRE +
LID-HANDLE BENT 500 430SS +
NAMEPLATE-BROIL KING
STOP BUMPER - SILICONE
HANDLE BEZEL - CHROME
BOLT THCP 1/4-20X1
BRACKET PROBE SS
STOP BUMPER - SILICONE
HINGE PIN W/HOLE
HITCH PIN CLIP +
ELECTRODE W/WIRE
COLLECTOR BOX 440/500 SS
GREASE SHIELD MODULAR SS +
FLAV-R-WAVE IR 304SS
Imperial™ | Regal™ Cast Iron Cooking Grids
WARMING RACK IR 500 201SS
BURNER MAIN DUAL TUBE IR LP
CLIP BURNER TUBE MOUNT SS
SCREW #10-24 QUAD PAN HEAD

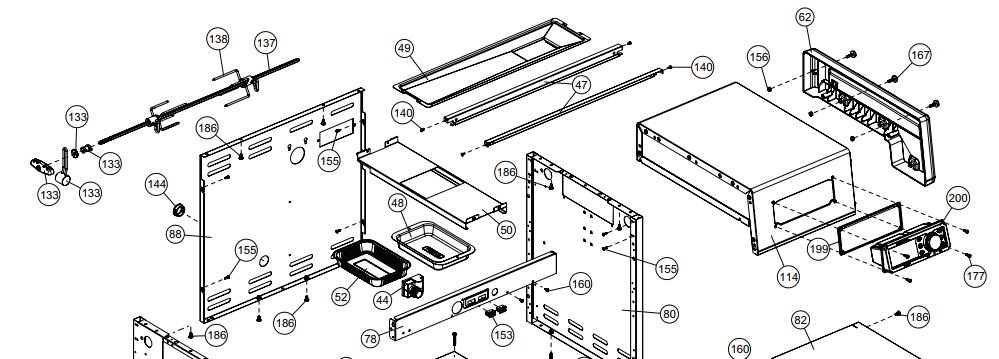

Grill Anatomy Image

Page 2

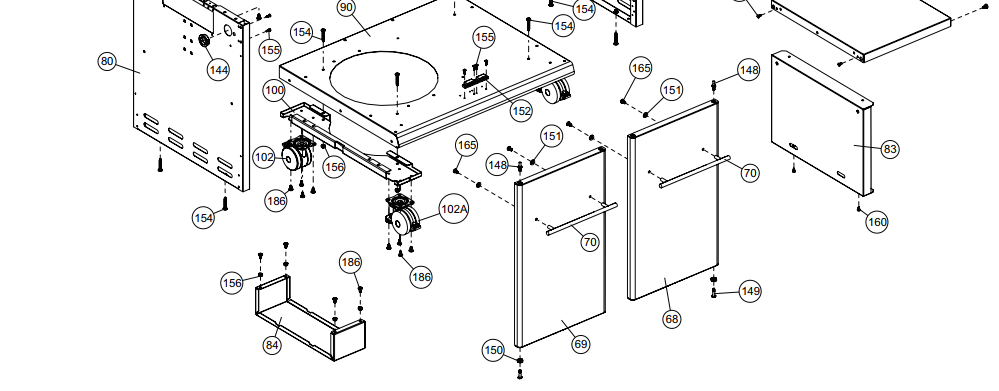

Grill Anatomy Image

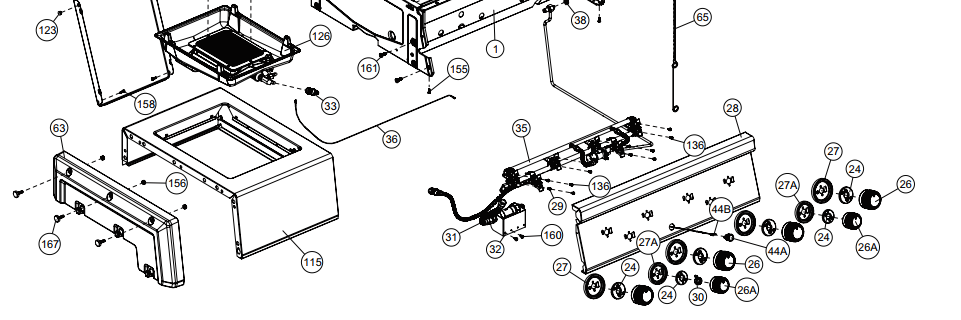

Grill Anatomy Image
Grill Anatomy Image
